250mm Axial Fan - YWF4E-250 - 240V, 1-Phase, 1400r/min
250mm Axial Fan - YWF4E-250 - 240V, 1-Phase, 1400r/min
At OzSupply Australia we are proud to stock on our Online Shop is the 250mm Axial Fan Single Phase. This 250mm Axial Fan is Heavy Duty and great for Personal, Commercial and Industrial uses, such as Condensing Units for Air-Conditioning and Refrigeration, Commercial Cool Rooms, Evaporators, Heaters, and Exhaust Fans. If used in Condensers, the applicable environment temperature is 0℃ to +60℃, and if used in Evaporators, the applicable Environment Temperature is from -30℃ to 0℃.
The 4-Pole Induction Electric Fan Motors are divided into 1-Phase Asynchronous Capacitor Fan Motors and 3-Phases Asynchronous Fan Motors which are widely used in Condenser, Evaporator, Ventilating Cycle and other Refrigeration Equipment Areas.

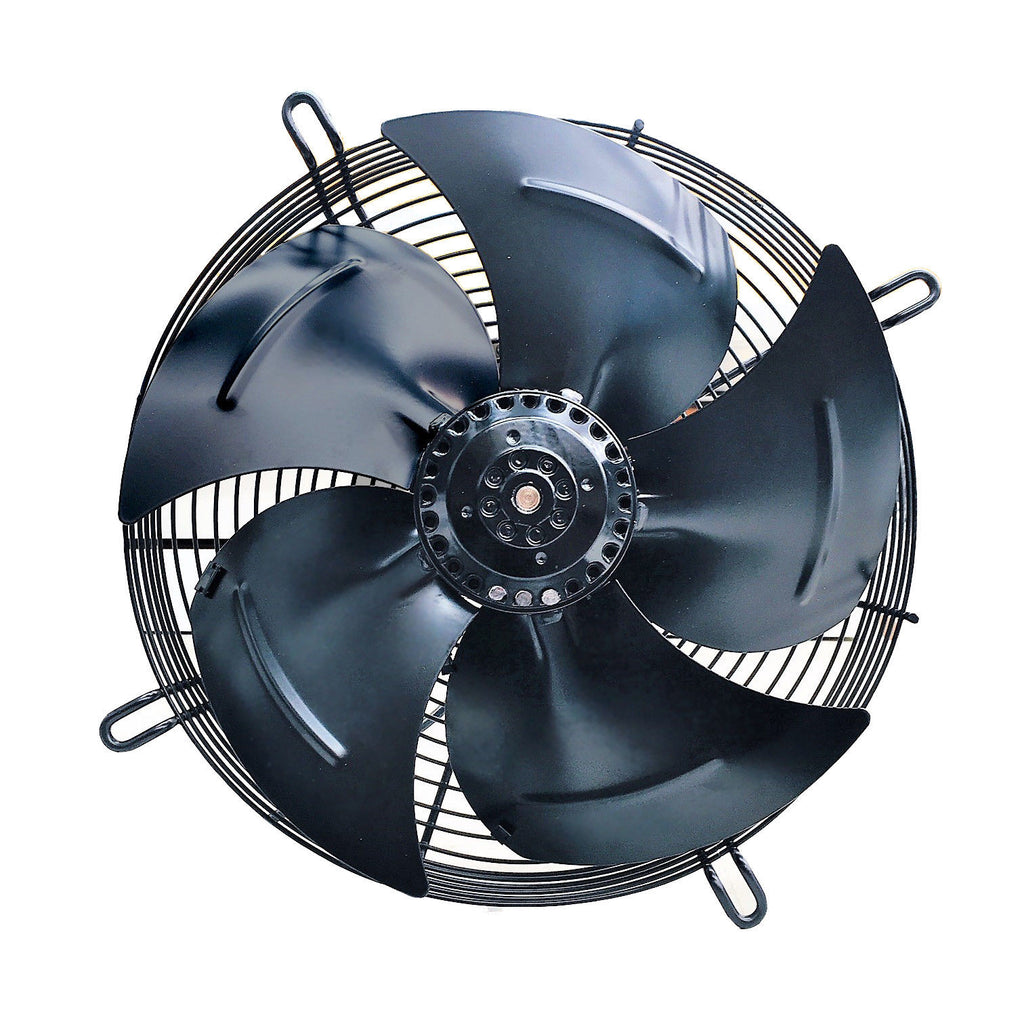

Please note that a fan guard on one side comes free with your Axial Fan (please see the pictures).
Benefits:
- Heavy Duty
- Great for Commercial and Industrial Use
- Low Noise
- Motor Average Working Life of 30000+ Hours
- Energy Saving
- Easy To Install
Features:
- Available with Fan guard
- Protection Class: IP42 or IP44
- Certification: CE
- Thermal Protector in the Winding
- Standard length of the electrical wire on the fan is 1.5 m
Specifications:
- Type: 1-Phase External Rotor Induction Electric Fan with Motor
- Model: YWF4E-250 Axial Fan
- Size: 250mm
- Motor Type: Asynchronous
- Speed: 1400r/min
- Induced Draft (Suction)
- Insulation Class: Class B
- Voltage: 240V
- Frequency: 50Hz
- Pole: 4
- Input Power: 60W
- Current: 0.30A
- Additional Protect Feature: Drip-Proof
- Type of Connection: Connection box- 1.5 m
If you need a Fan Guard to fully enclose your fan on both sides rather than install it straight in the wall, please check out our wide range of Fan Guards/ Covers
| Code | Diameter (mm) |
No of blades | Voltage, (v) |
Phase | Speed (r/pm) |
Frequency (Hz) |
Input (W) |
Noise (dbm) |
Current (A) |
Air volume (m3/h) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YWF4E-250 | 250 | 5 | 220 - 240 | 1 | 1400 | 50 | 60 | 56 | 0.3 | 1200 | 2.5 |
| YWF4E-300 | 300 | 5 | 220 - 240 | 1 | 1400 | 50 | 110 | 60 | 0.45 | 2000 | 3.3 |
| YWF4E-350 | 350 | 5 | 220 - 240 | 1 | 1400 | 50 | 150 | 64 | 0.66 | 3490 | 4.8 |
| YWF4D-300 | 300 | 5 | 415 | 3 | 1400 | 50 | 100 | 61 | 0.45/0.3 | 2000 | 3.3 |
| YWF4D-350 | 350 | 5 | 415 | 3 | 1400 | 50 | 160 | 65 | 0.6 | 3580 | 4.8 |
| YWF4E-400 | 400 | 5 | 220 - 240 | 1 | 1400 | 50 | 270 | 71 | 1.2 | 4900 | 5.6 |
| YWF4E-450 | 450 | 5 | 220 - 240 | 1 | 1400 | 50 | 340 | 72 | 1.55 | 6000 | 7.2 |
| YWF4E-500 | 500 | 5 | 220 - 240 | 1 | 1400 | 50 | 470 | 73 | 2.1 | 6700 | 10 |
