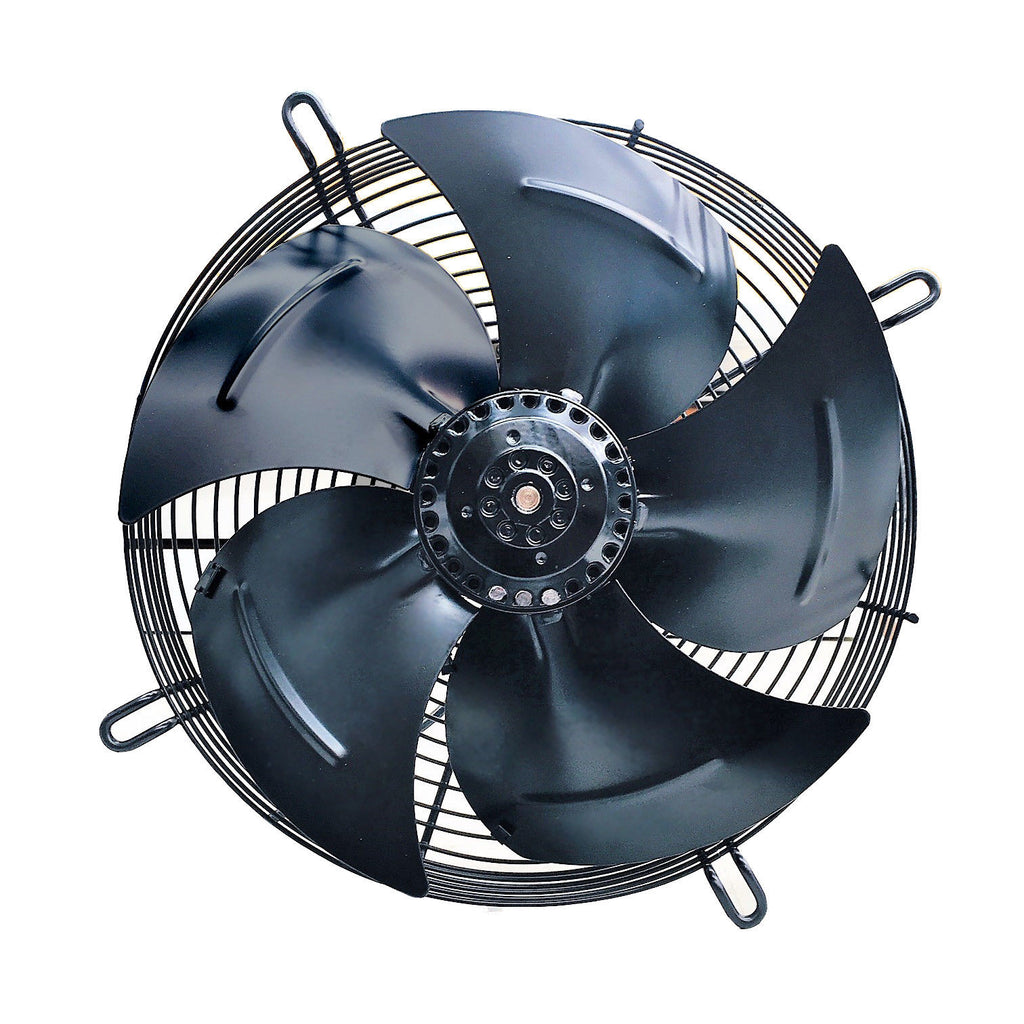

300mm Axial Fan - YWF4D-300 - 415V, 1400r/min, 3-Phase
300mm Axial Fan - YWF4D-300 - 415V, 1400r/min, 3-Phase
At OzSupply Australia our Axial Fans are heavy duty and great for Personal, Commercial and Industrial uses, such as condensing units for Air-Conditioning and Refrigeration, Commercial Cool Rooms, Evaporators, Heaters. If used in Condensers, the applicable environment temperature is 0℃ to +60℃, and if used in Evaporators, the applicable environment temperature is from -30℃ to 0℃.
4-Pole Induction Electric Fan Motors are divided into 1-Phase Asynchronous Capacitor Fan Motors and 3-Phases Asynchronous Fan Motors which are widely used in Condenser, Evaporator, Ventilating Cycle and other Refrigeration Equipment Areas.
Benefits & Features:
- Heavy Duty
- Great for Commercial and Industrial Use
- Low Noise
- Motor Average Working Life of 30000+ Hours
- Energy saving
- Easy to install
- Available with Fan guard
- Protection Class: IP42 or IP44
- Certification: CE
- Thermal protector in the winding
- Standard length of the electrical wire on the fan is 1.5 m
Specifications - 300mm Axial Fan:
- Type: 3-Phase External Rotor Induction Electric Fan with Motor
- Models: YWF4D-300 Axial Fans
- Size: 300mm
- Motor Type: Asynchronous
- Speed: 1400r/min
- Induced Draft (Suction)
- Insulation Class: Class B
- Voltage: 415V
- Frequency: 50Hz
- Air Volume: 2000 m3/h
- Pole: 4
- Input Power: 100W
- Current: 0.45/0.3A
- Additional Protect Feature: Drip-proof
- Type of Connection: Connection box - 1.5 m
If you need a Fan Guard, please check out our wide range of Fan Guards/ Covers
| Code | Diameter (mm) |
No of blades | Voltage, (v) |
Phase | Speed (r/pm) |
Frequency (Hz) |
Input (W) |
Noise (dbm) |
Current (A) |
Air volume (m3/h) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YWF4E-250 | 250 | 5 | 220 - 240 | 1 | 1400 | 50 | 60 | 56 | 0.3 | 1200 | 2.5 |
| YWF4E-300 | 300 | 5 | 220 - 240 | 1 | 1400 | 50 | 110 | 60 | 0.45 | 2000 | 3.3 |
| YWF4E-350 | 350 | 5 | 220 - 240 | 1 | 1400 | 50 | 150 | 64 | 0.66 | 3490 | 4.8 |
| YWF4D-300 | 300 | 5 | 415 | 3 | 1400 | 50 | 100 | 61 | 0.45/0.3 | 2000 | 3.3 |
| YWF4D-350 | 350 | 5 | 415 | 3 | 1400 | 50 | 160 | 65 | 0.6 | 3580 | 4.8 |
| YWF4E-400 | 400 | 5 | 220 - 240 | 1 | 1400 | 50 | 270 | 71 | 1.2 | 4900 | 5.6 |
| YWF4E-450 | 450 | 5 | 220 - 240 | 1 | 1400 | 50 | 340 | 72 | 1.55 | 6000 | 7.2 |
| YWF4E-500 | 500 | 5 | 220 - 240 | 1 | 1400 | 50 | 470 | 73 | 2.1 | 6700 | 10 |
