500mm Axial Fan - YWF4E-500 - 240V, 1-Phase, 1400r/min
500mm Axial Fan - YWF4E-500 - 240V, 1-Phase, 1400r/min
At OzSupply Australia our Axial Fans are heavy duty and great for personal, commercial and industrial uses, such as condensing units for air-conditioning and refrigeration, commercial cool rooms, evaporators, heaters, and exhaust fans. If used in condensers, the applicable environment temperature is 0℃ to +60℃, and if used in evaporators, the applicable environment temperature is from -30℃ to 0℃.
4-Pole Induction Electric Fan Motors are divided into 1-Phase asynchronous capacitor fan motors and 3-Phases asynchronous fan motors which are widely used in condenser, evaporator, ventilating cycle and other refrigeration equipment areas.

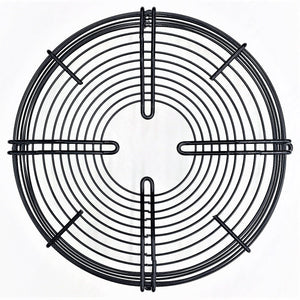

Please note that a fan guard on one side comes free with your axial fan (please see the pictures).
Benefits:
- Heavy duty
- Great for commercial and industrial use
- Low noise
- Motor average working life of 30000+ hours
- Energy saving
- Easy to install
Features:
- Available with Fan guard
- Protection Class: IP42 or IP44
- Certification: CE
- Thermal protector in the winding
- Standard length of the electrical wire on the fan is 1.5 m
Specifications:
- Type: 1-Phase External Rotor Induction Electric Fan with Motor
- Model: YWF4E-500 Axial Fan
- Size: 500mm
- Motor Type: Asynchronous
- Speed: 1400r/min
- Induced Draft (Suction)
- Insulation Class: Class B
- Voltage: 220-240V
- Frequency: 50Hz
- Pole: 4
- Input Power: 470W
- Current: 2.1A
- Additional Protect Feature: Drip-proof
- Type of Connection: Connection box- 1.5 m
If you need a Fan Guard to fully enclose your fan on both sides rather than install it straight in the wall, please check out our wide range of Fan Guards/ Covers
| Code | Diameter (mm) |
No of blades | Voltage, (v) |
Phase | Speed (r/pm) |
Frequency (Hz) |
Input (W) |
Noise (dbm) |
Current (A) |
Air volume (m3/h) |
Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| YWF4E-250 | 250 | 5 | 220 - 240 | 1 | 1400 | 50 | 60 | 56 | 0.3 | 1200 | 2.5 |
| YWF4E-300 | 300 | 5 | 220 - 240 | 1 | 1400 | 50 | 110 | 60 | 0.45 | 2000 | 3.3 |
| YWF4E-350 | 350 | 5 | 220 - 240 | 1 | 1400 | 50 | 150 | 64 | 0.66 | 3490 | 4.8 |
| YWF4D-300 | 300 | 5 | 415 | 3 | 1400 | 50 | 100 | 61 | 0.45/0.3 | 2000 | 3.3 |
| YWF4D-350 | 350 | 5 | 415 | 3 | 1400 | 50 | 160 | 65 | 0.6 | 3580 | 4.8 |
| YWF4E-400 | 400 | 5 | 220 - 240 | 1 | 1400 | 50 | 270 | 71 | 1.2 | 4900 | 5.6 |
| YWF4E-450 | 450 | 5 | 220 - 240 | 1 | 1400 | 50 | 340 | 72 | 1.55 | 6000 | 7.2 |
| YWF4E-500 | 500 | 5 | 220 - 240 | 1 | 1400 | 50 | 470 | 73 | 2.1 | 6700 | 10 |
